Description
Heavy-duty 12 AWG SJT cord with L6-20P molded plug, design for maximum durability and long life. Industrial grade Grounding NEMA 5-20R Connector with 2 poles and 3 wires. Cables are fully rated for 250 Volt/20 Amp applications



The 5-20R T-Blade Connector is compatible with both 5-20P 20 Amp plugs and 5-15P 15 Amp Plugs.
WARNING THIS Adapter outputs 208-250 Volts, DO NOT use on 125V equipment.

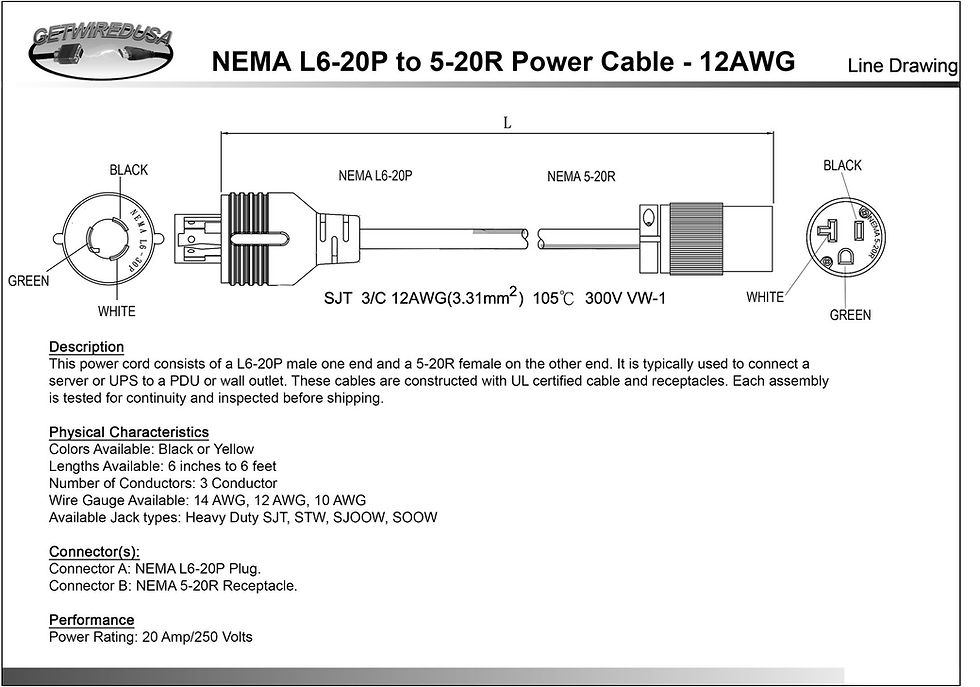

Featuring a NEMA 5-20R female connector on one end and an L6-20P male plug on the other, this power cord is the ideal solution for powering a server in a data center or as a patch cord from your server to PDU. Simply connect the NEMA 5-20R receptacle to your 250 Volt 20 Amp device and plug the L6-20P connector into an L6-20R wall outlet.



  • This power cord is rated for 250 volts and 20 amps of power.
  • SJT Service Cord Specifications
  • Conductor: Stranded bare copper, fully annealed per ASTM B-174
  • Insulation: Oil-resistant color-coded PVC per UL 62
  • Jacket: Premium-grade oil-resistant PVC (black)
  • Temperature Rating: -34°C to + 105°C (60°C in wet locations)
  • Voltage Rating: 300V
  • Model number: UL-L620-520-250V-1ft





1ft 12 AWG 20A 250V Heavy-Duty Power Cord NEMA L6-20P to 5-20R

SKU: UL-L620-520-250V-1ft
$59.95Price
Excluding Sales Tax |
